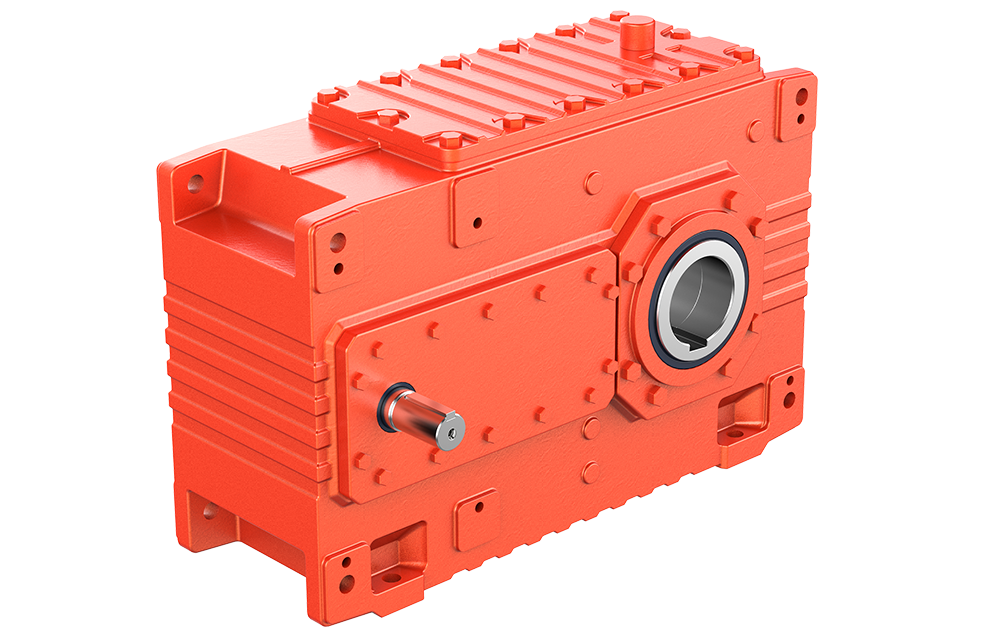

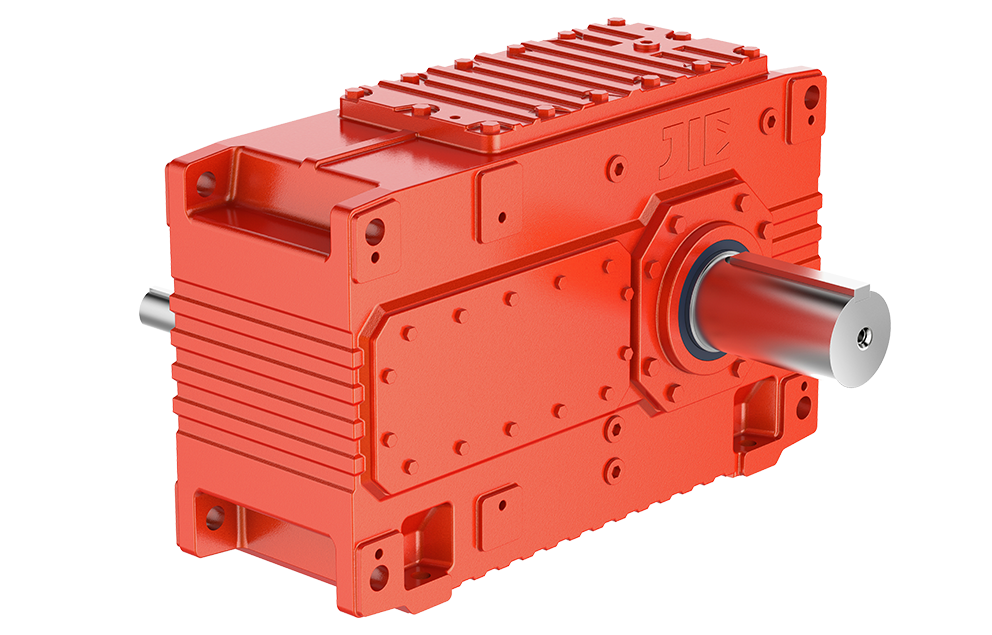

JRHH Parallel Shaft Gear Units

Specification	JRHH1..		JRHH2..		JRHH3..		JRHH4..
	Torque(N*m)	speed ratio	Torque(N*m)	speed ratio	Torque(N*m)	speed ratio	Torque(N*m)	speed ratio
3	3.2	1.25-4	3.3	4.5-22.4
4			6.7	4.5-22.4
5	9.6	1.25-5.6	11.2	6.3-22.4	11.6	25-90
6			14.4	8-28	15.5	31.5-112
7	17.8	1.25-5.6	20.3	6.3-22.4	21.7	25-90	21.7	100-355
8			25.6	8-28	27.2	31.5-112	27.2	125-450
9	28.7	1.25-5.6	33.7	6.3-22.4	35.7	25-90	35.7	100-355
10			42.2	8-28	43.8	31.5-112	44.2	125-450
11	50.6	1.6-5.6	59.3	6.3-22.4	63.5	25-90	61.6	100-355
12			73.8	8-28	77.2	31.5-112	78	125-450
13	77	1.6-5.6	86	6.3-20	88	22.4-90	90.7	100-355
14			107	8-25	109	28-112	113	125-450
15	130	2-5.6	143	6.3-20	153	22.4-90	153	100-355
16			160	7.1-22.4	173	25-100	173	112-400
17	173	2.8-5.6	195	6.3-20	200	22.4-90	200	100-355
18			230	7.1-22.4	240	25-100	240	112-400
19	245	4-5.6	292	6.3-20	300	22.4-90	300	100-355
20			335	7.1-22.4	345	25-100	345	112-400
21			410	7.1-20	420	22.4-90	420	100-355
22			458	8-22.4	470	25-100	470	112-400
23			640	6.3-20	640	22.4-90	640	100-355
24			725	7.1-22.4	725	25-100	725	112-400
25			860	6.3-20	860	22.4-90	860	100-355
26			1030	7.1-22.4	1030	25-100	1030	112-400
27			1230	8-20	1230	22.4-90	1230	100-355
28			1400	9-22.4	1400	25-100	1400	112-400

Note: 1. The unit of torque is kN.m, which is the data of the one with the largest rated output torque in each speed ratio under this specification. For specific data, please refer to the catalog.

2. The speed ratio is the nominal speed ratio, and the actual speed ratio is slightly different. Please refer to the catalog for specific data.

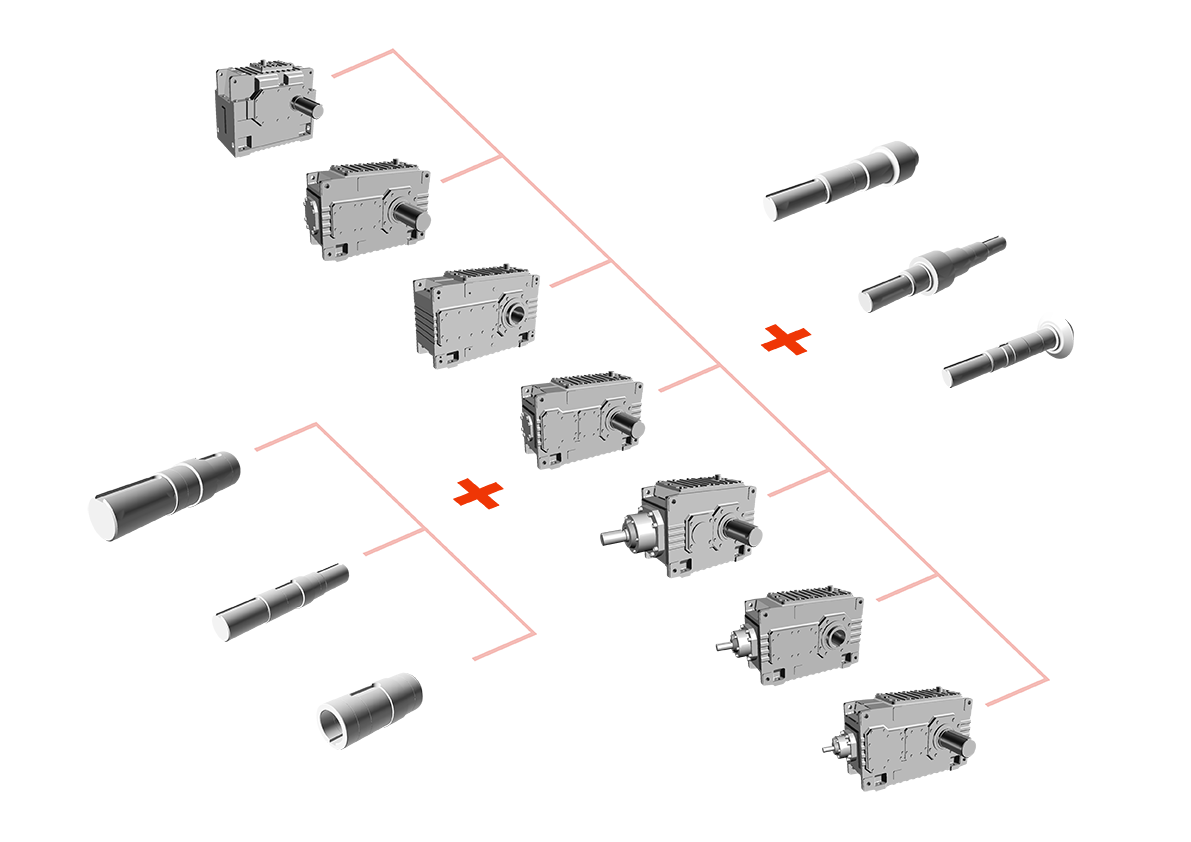

Jie brand JRH industrial gearboxes follow the concept of modularization and optimization design. The whole series of products include single solid shaft input, double solid shaft input, IEC motor flange input, single solid shaft output, double solid shaft output, hollow shaft output, Hollow shaft output with expansion disc, horizontal installation, vertical installation, torque arm installation and other input interfaces, output modules and installation types, while supporting the modular combination and integration of multi-stage reducers and reducers of different models and specifications, And according to customer needs for personalized design and manufacture.

paint coating

The coating is made of green paint products that meet the national environmental protection requirements. The paint does not contain toxic and harmful substances such as VOC, TDI, benzene/toluene, xylene, and heavy metals. It has super adhesion, weather resistance and corrosion resistance. It can be applied to ordinary outdoor medium corrosive environments and various indoor working conditions. And there is an enhanced coating system to adapt to heavy corrosion environment.

Nameplate identification

The nameplate adopts stainless steel laser printing process, which is clear and durable. At the same time, the product QR code is added, and product information and sales service information can be easily checked by scanning the QR code. There are various guiding signs pasted on the surface of the product, which can greatly reduce the risk of misuse.

Packaging scheme

The packing method is strong and durable, and all kinds of signs on the surface of the box are clear, which can fully meet the needs of automobile stacking or container logistics transportation. According to the product type and shipment quantity, the packing box is divided into carton packaging and wooden box packaging. The content of the box sticker includes: product specifications, Quantity and other information to facilitate delivery and receipt inspection
