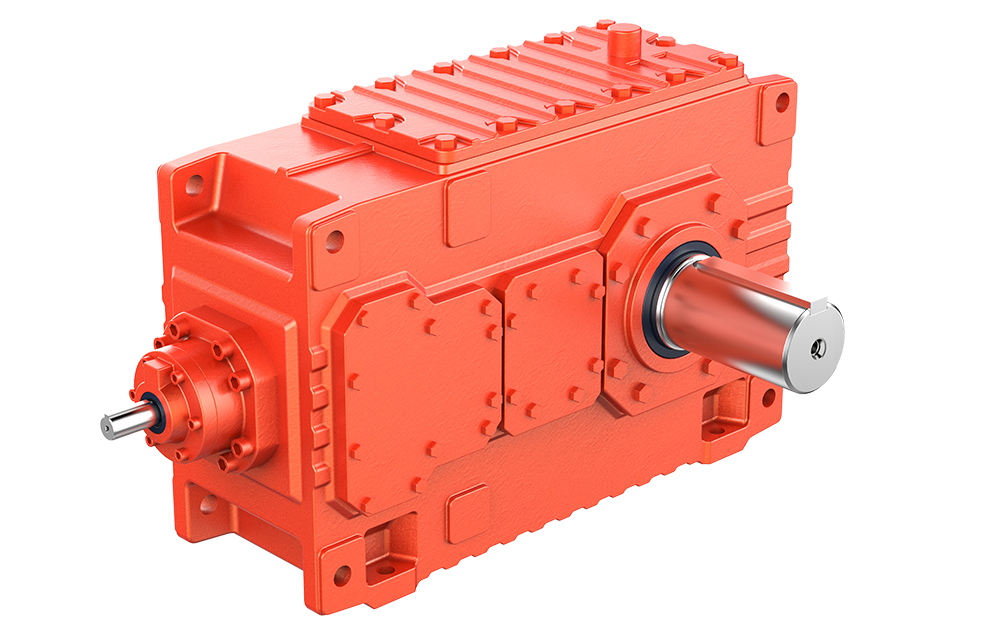

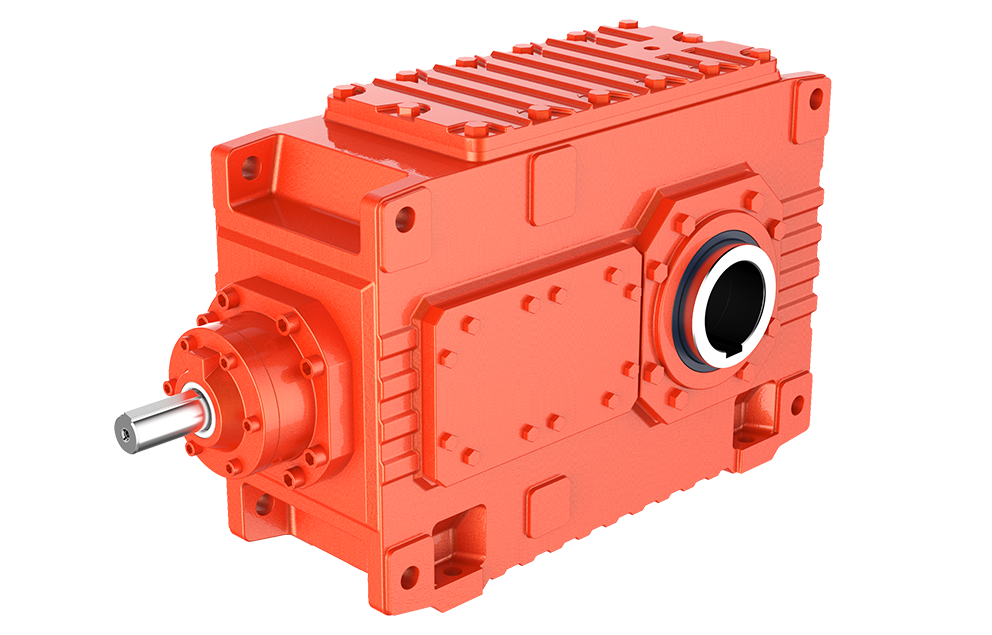

JRHB Helical Bevel Gear Units

Specification	JRHB2..		JRHB3..		JRHB4..
	Torque (N·m)	speed ratio	Torque (N·m)	speed ratio	Torque (N·m)	speed ratio
4	6.2	5-11.2	6.7	12.5-71
5	9.4	5-11.2	11.6	12.5-71	11.6	80-315
6	12	6.3-14	15.5	16-90	15.5	100-400
7	19	5-11.2	21.7	12.5-71	21.7	80-315
8	23.8	6.3-14	27.2	16-90	27.2	100-400
9	29.9	5-11.2	35.7	12.5-71	35.7	80-315
10	38	6.3-14	43.8	16-90	44.2	100-400
11	54	5-11.2	63.5	12.5-71	61.6	80-315
12	66.3	6.3-14	77.2	16-90	78	100-400
13	81.1	5-11.2	90.7	12.5-71	90.7	80-315
14	101	6.3-14	113	16-90	113	100-400
15	132	5-11.2	153	12.5-71	153	80-315
16	148	5.6-12.5	173	14-80	173	100-355
17	195	5.6-11.2	200	12.5-71	200	80-315
18	230	7.1-12.5	240	14-80	240	90-355
19			300	12.5-71	300	80-315
20			345	14-80	345	90-355
21			420	12.5-71	420	80-315
22			470	14-80	470	90-355
23			640	20-71	640	80-315
24			725	22.4-80	725	90-355
25			860	20-71	860	80-315
26			1030	22.4-80	1030	90-355
27			1230	20-71	1225	80-315
28			1400	22.4-80	1400	90-355

Note: 1. The unit of torque is kN.m, which is the data of the one with the largest rated output torque in each speed ratio under this specification. For specific data, please refer to the catalog.

2. The speed ratio is the nominal speed ratio, and the actual speed ratio is slightly different. Please refer to the catalog for specific data.

Jie brand JRH industrial gearboxes follow the concept of modularization and optimization design. The whole series of products include single solid shaft input, double solid shaft input, IEC motor flange input, single solid shaft output, double solid shaft output, hollow shaft output, Hollow shaft output with expansion disc, horizontal installation, vertical installation, torque arm installation and other input interfaces, output modules and installation types, while supporting the modular combination and integration of multi-stage reducers and reducers of different models and specifications, And according to customer needs for personalized design and manufacture.

paint coating

The coating is made of green paint products that meet the national environmental protection requirements. The paint does not contain toxic and harmful substances such as VOC, TDI, benzene/toluene, xylene, and heavy metals. It has super adhesion, weather resistance and corrosion resistance. It can be applied to ordinary outdoor medium corrosive environments and various indoor working conditions. And there is an enhanced coating system to adapt to heavy corrosion environment.

Nameplate identification

The nameplate adopts stainless steel laser printing process, which is clear and durable. At the same time, the product QR code is added, and product information and sales service information can be easily checked by scanning the QR code. There are various guiding signs pasted on the surface of the product, which can greatly reduce the risk of misuse.

Packaging scheme

The packing method is strong and durable, and all kinds of signs on the surface of the box are clear, which can fully meet the needs of automobile stacking or container logistics transportation. According to the product type and shipment quantity, the packing box is divided into carton packaging and wooden box packaging. The content of the box sticker includes: product specifications, Quantity and other information to facilitate delivery and receipt inspection
