JRW Gear Units

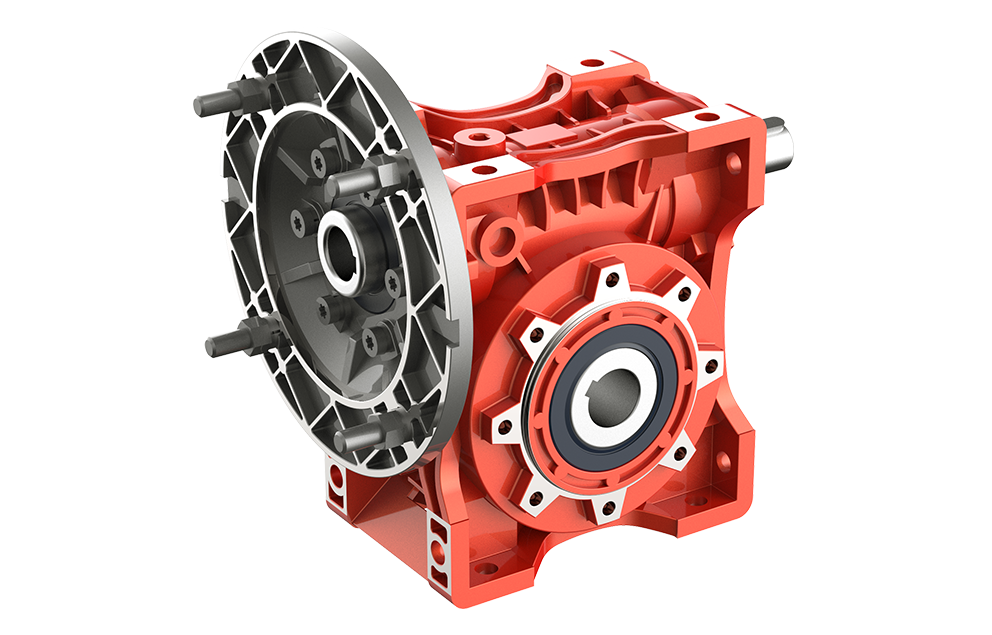

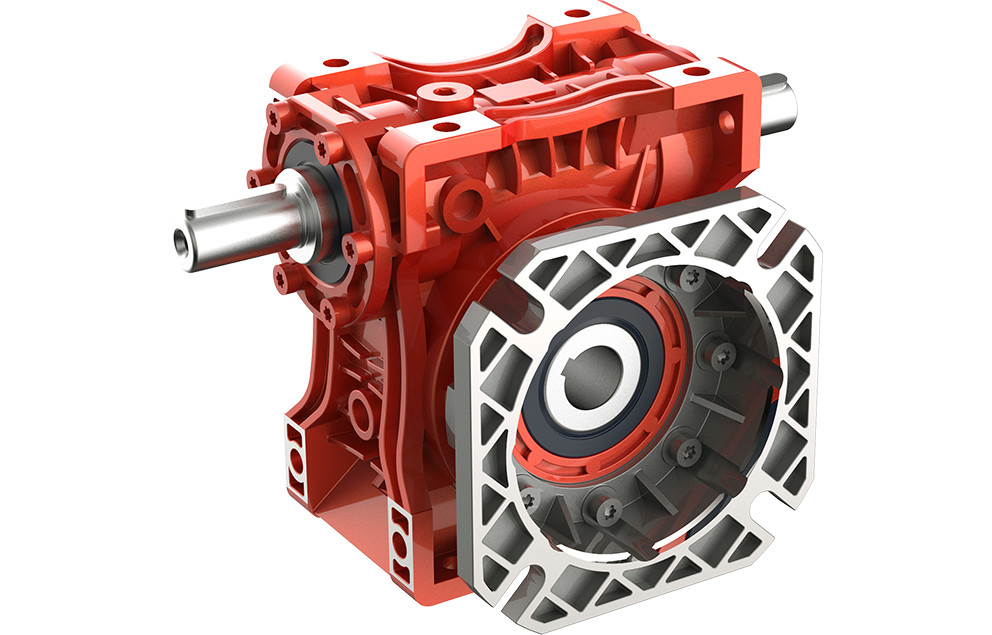

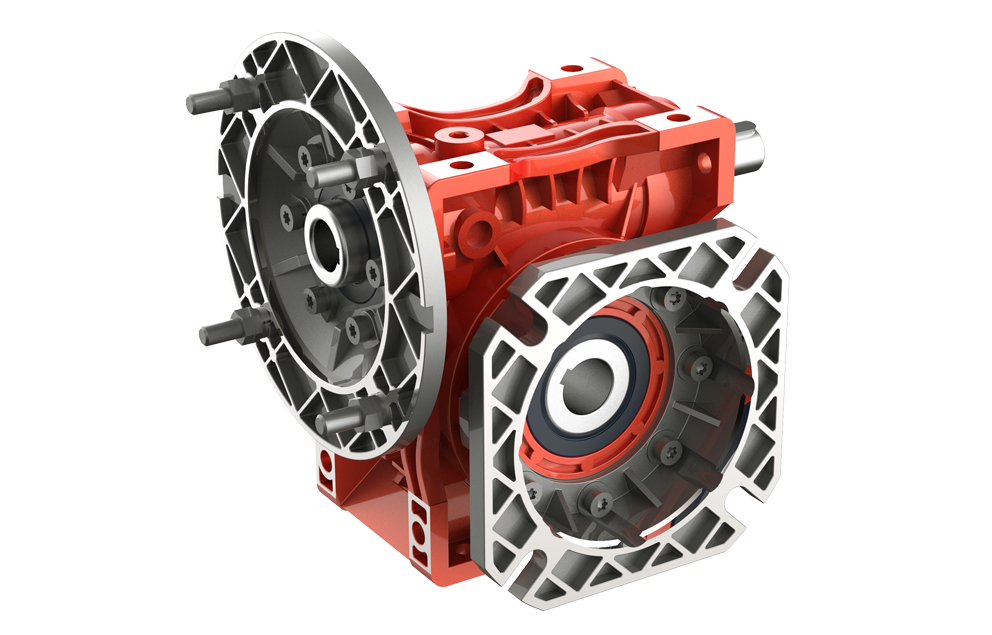

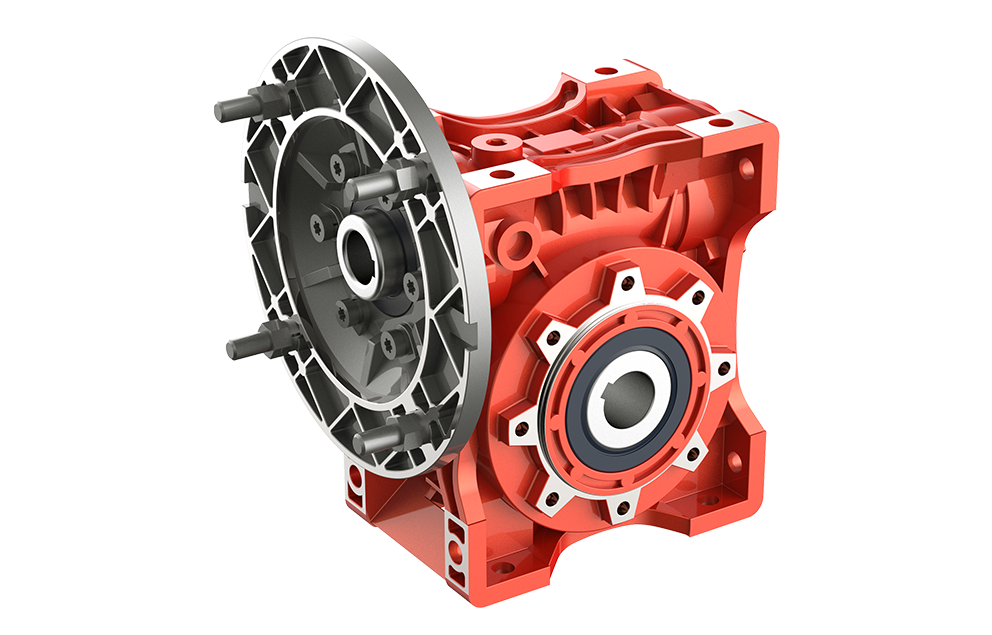

JRWD Worm Gear Units

JRW high-efficiency worm reducers with independent intellectual property rights, is featured with low noise, low backlash, high precision and high efficiency, no oil leakage and short lead time. The products range include JRW standard worm gearbox with JRW high precision worm gearbox.

Configure your individual product

Details about your individual product

CAD data and documentation for your configuration

Start configuring the product now
  • Technical Parameters Download

    Product number

    Output torque T2n (Nm)

    speed ratio

    Min

    Max

    Min

    Max

    JRST.30

    13

    21

    7.5

    80

    JRST.40

    29

    45

    7.5

    100

    JRST.50

    55

    84

    7.5

    100

    JRST.63

    118

    160

    7.5

    100

    JRST.75

    180

    230

    7.5

    100

    JRST.90

    270

    410

    7.5

    100

    JRST.110

    483

    725

    7.5

    100

    JRST.130

    740

    1050

    7.5

    100

    JRST.150

    1000

    1550

    7.5

    100


  • Optional Modules

    Jie brand JRW worm reducer follows the modular and optimized design concept. The whole series of products include worm reducer, solid shaft input interface, IEC motor input interface, servo motor input interface, NEMA motor input interface, solid shaft output module, Hollow shaft output module, flange output module, foot installation, flange installation, torque arm installation and other input interfaces, output modules and installation types, while supporting the modular combination and integration of multi-stage reducers and reducers of different models and specifications, And according to customer needs for personalized design and production.

  • Paint coating, nameplate identification, packaging scheme
    paint coating

    The coating is made of green paint products that meet the national environmental protection requirements. The paint does not contain toxic and harmful substances such as VOC, TDI, benzene/toluene, xylene, and heavy metals. It has super adhesion, weather resistance and corrosion resistance. It can be applied to ordinary outdoor medium corrosive environments and various indoor working conditions. And there is an enhanced coating system to adapt to heavy corrosion environment.

    Nameplate identification

    The nameplate adopts stainless steel laser printing process, which is clear and durable. At the same time, the product QR code is added, and product information and sales service information can be easily checked by scanning the QR code. There are various guiding signs pasted on the surface of the product, which can greatly reduce the risk of misuse.

    Packaging scheme

    The packing method is strong and durable, and all kinds of signs on the surface of the box are clear, which can fully meet the needs of automobile stacking or container logistics transportation. According to the product type and shipment quantity, the packing box is divided into carton packaging and wooden box packaging. The content of the box sticker includes: product specifications, Quantity and other information to facilitate delivery and receipt inspection

  • Optional Colours
    • Gentian blue RAL-5010
    • grey blue RAL-7031
