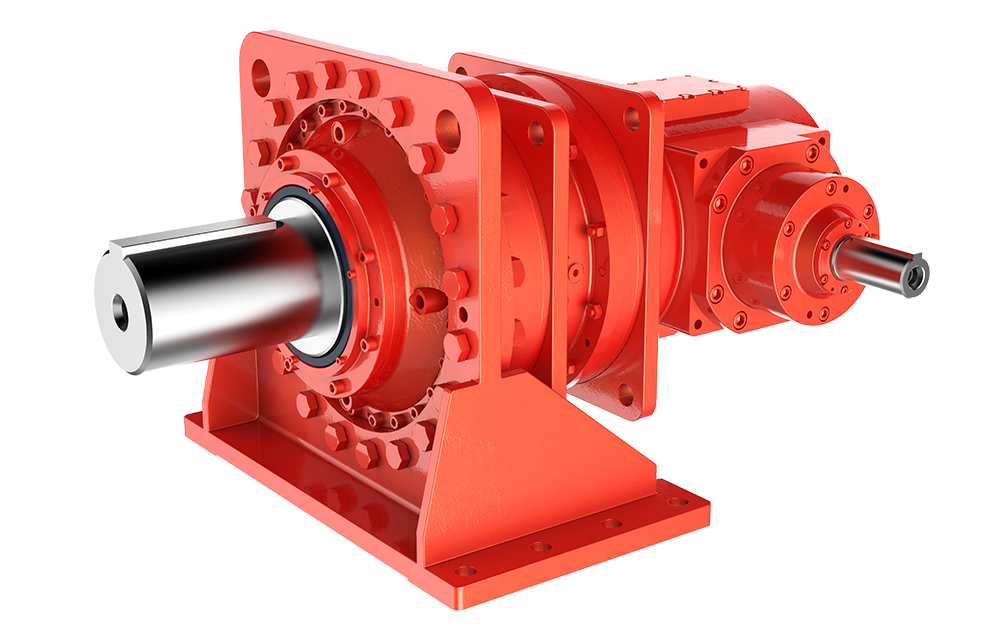

JRP planetary gear units, with independent intellectual property rights, is featured with no oil leakage, long service life, high torque, high speed ratio and intelligence. It includes JRP..N planetary gear units, JRP..S parallel shaft planetary gear units, JRP.._ Bevel helical planetary gear units, JRP..K bevel helical - parallel shaft planetary gear units, and other JRP series product.
Details about your individual product
CAD data and documentation for your configuration
Product number |
Rated output torque T2n (Nm) |
speed ratio |
|
Min |
Max |
||
JRP..9 |
22000 |
20 |
4000 |
JRP..10 |
31000 |
20 |
4000 |
JRP..11 |
42000 |
20 |
4000 |
JRP..12 |
60000 |
20 |
4000 |
JRP..13 |
83000 |
20 |
4000 |
JRP..14 |
117000 |
20 |
4000 |
JRP..16 |
160000 |
20 |
4000 |
JRP..17 |
202000 |
20 |
4000 |
JRP..18 |
244000 |
20 |
4000 |
JRP..19 |
295000 |
20 |
4000 |
JRP..20 |
354000 |
20 |
4000 |
JRP..21 |
392000 |
20 |
4000 |
JRP..22 |
450000 |
20 |
4000 |
JRP..23 |
513000 |
20 |
4000 |
JRP..24 |
592000 |
20 |
4000 |
JRP..25 |
684000 |
20 |
4000 |
JRP..26 |
763000 |
20 |
4000 |
JRP..27 |
852000 |
20 |
4000 |
JRP..28 |
950000 |
20 |
4000 |
JRP..29 |
1060000 |
20 |
4000 |
JRP..30 |
1200000 |
20 |
4000 |
JRP..31 |
1330000 |
20 |
4000 |
JRP..32 |
1500000 |
20 |
4000 |
JRP..33 |
1680000 |
20 |
4000 |
JRP..34 |
1920000 |
20 |
4000 |
JRP..35 |
2240000 |
20 |
4000 |
JRP..36 |
2600000 |
20 |
4000 |
Jie brand JRP planetary gearbox follows the concept of modularization and optimization design. The whole series of products include AD2 type solid shaft input interface, ADM type flange solid shaft input interface, IEC motor input interface, A type shrink disc output module, B type Type C solid shaft output module, C type spline hollow shaft output module, D type spline solid shaft output module, base installation, flange installation, torque arm installation and other input interfaces, output modules and installation types, supporting multiple The modular combination and integration of stage reducers and reducers of different models and specifications can be customized and manufactured according to customer needs.
The coating is made of green paint products that meet the national environmental protection requirements. The paint does not contain toxic and harmful substances such as VOC, TDI, benzene/toluene, xylene, and heavy metals. It has super adhesion, weather resistance and corrosion resistance. It can be applied to ordinary outdoor medium corrosive environments and various indoor working conditions. And there is an enhanced coating system to adapt to heavy corrosion environment.
Nameplate identificationThe nameplate adopts stainless steel laser printing process, which is clear and durable. At the same time, the product QR code is added, and product information and sales service information can be easily checked by scanning the QR code. There are various guiding signs pasted on the surface of the product, which can greatly reduce the risk of misuse.
Packaging schemeThe packing method is strong and durable, and all kinds of signs on the surface of the box are clear, which can fully meet the needs of automobile stacking or container logistics transportation. According to the product type and shipment quantity, the packing box is divided into carton packaging and wooden box packaging. The content of the box sticker includes: product specifications, Quantity and other information to facilitate delivery and receipt inspection
