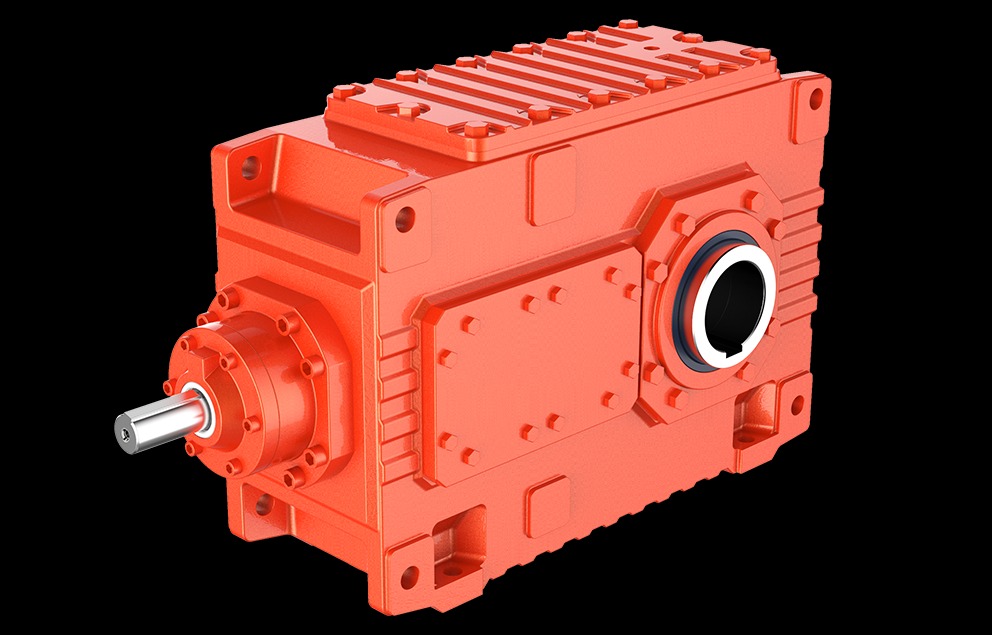

Guide of JRHB Helical Bevel Gear Units

May 30, 2024 888 Previewers

The JRHB series is a line of intelligent industrial gear units produced by Jie Drive Technology Co. Ltd. These gearboxes are known for their:

Long service life

Low noise operation

No oil leakage

Lightweight design

Compatibility with intelligent monitoring systems for preventive maintenance

They are ideal for applications requiring a right-angle power transmission with high torque capacity.

Functionality

The JRHB gearbox utilizes spiral bevel gears. These gears have helical teeth that mesh together gradually, creating a smoother and quieter operation compared to straight-cut bevel gears. This translates to reduced vibration and increased efficiency.

The gearbox features a hollow-shaft design, allowing for easy integration with existing drive shafts.

Specifications

The JRHB series comes in a variety of models with different torque and speed ratio capabilities. Here's a summary of the specifications you provided:

Torque: Ranges from 4 Nm to 1400 Nm (depending on model and speed ratio)

Speed Ratio: Ranges from 5:1 to 80:1 (depending on model)

Note: This information provides a general overview. For specific details on a particular model, it's recommended to consult the Jie Drive catalog.

Applications

Due to their durability, smooth operation, and high torque capacity, JRHB gearboxes are suitable for a wide range of applications, including:

Industrial automation equipment

Material handling machinery

Conveyor systems

Textile machinery

Robotics

And many more

The JRHB series by Jie Drive offers a reliable and efficient solution for right-angle power transmission in various industrial applications. They provide a combination of high torque capacity, quiet operation, and long service life. If you're looking for a robust and intelligent gearbox solution, the JRHB series is definitely worth considering.
