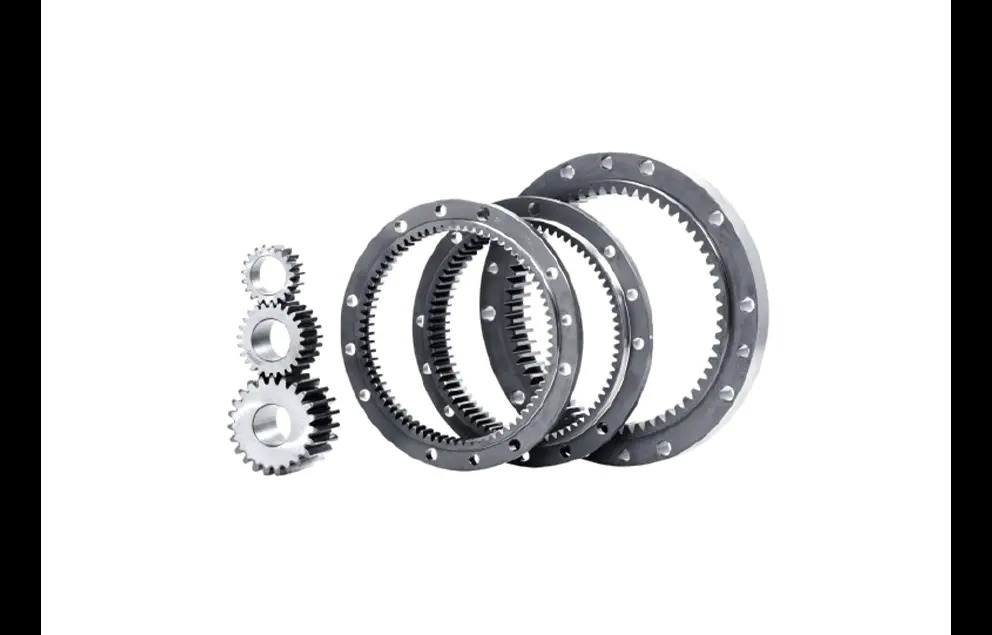

what is Planetary&Ring Gear Sets and how they work together:

Jul 12, 2024 888 Previewers

What they are and how they work together:

Planetary Gear Set: This is a set of three gears that work together to transmit torque. The three gears are:

Sun Gear: This is the gear located at the center of the system. It typically receives the input torque.

Planet Gears: These are smaller gears that orbit around the sun gear. There can be multiple planet gears in a set.

Ring Gear: This is the outer gear that meshes with the planet gears.

How They Work Together: The way these gears work together depends on which gear is fixed (held stationary). There are three possible configurations:

Sun Gear Fixed: In this configuration, the ring gear rotates in the opposite direction of the planet gears. This setup results in a speed reduction and a torque increase.

Planet Carrier Fixed: Here, the carrier holding the planet gears is fixed. This makes the ring gear rotate in the same direction as the sun gear, but at a slower speed. This results in a speed reduction with a little less torque increase compared to when the sun gear is fixed.

Ring Gear Fixed: When the ring gear is fixed, the sun gear and planet gears rotate around it in opposite directions. This configuration results in a speed increase and a torque reduction.

Planetary gear systems are used in a variety of applications due to several advantages:

Compact Design: They can transmit a high amount of torque in a smaller package compared to other gear systems.

High Gear Ratio: They can achieve a large speed reduction or increase in a single stage.

Smooth Operation: They provide smooth and quiet operation due to the distribution of load among multiple planet gears.

Here are some examples of where you might find planetary gear systems:

Automatic transmissions in vehicles

Wheel drives in tractors and construction equipment

Turbine engines in airplanes

Robotics applications

Electric screwdrivers and other power tools
