Transmission comparison of reducers

Nov 08, 2024 888 Previewers

1. Gear reducers and worm reducers - Transmission comparison

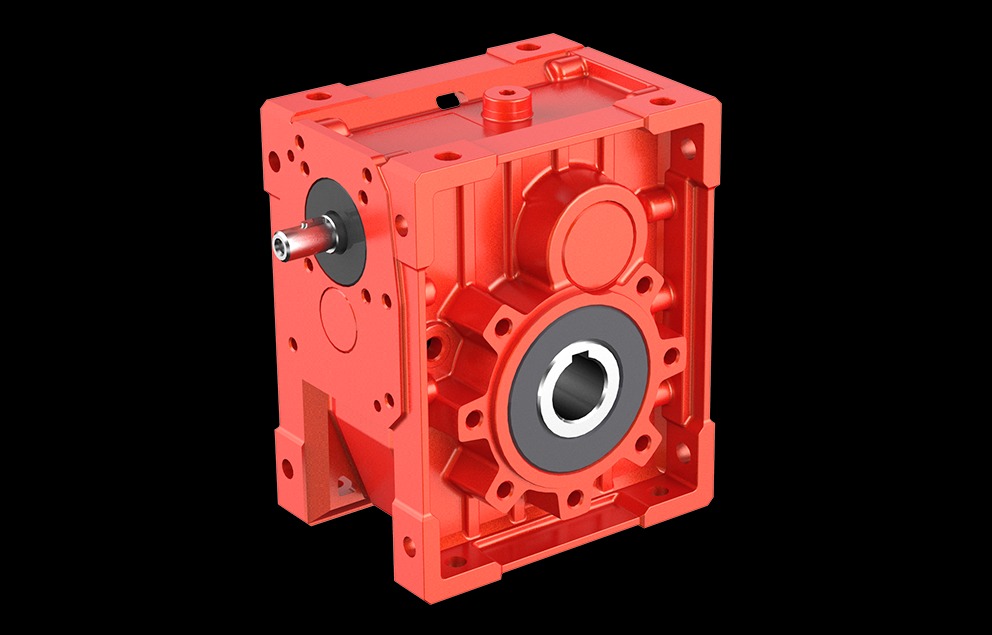

Gear reducers: usually composed of multiple gears, using the meshing of gears to change the speed, torque and load-bearing capacity of the prime mover. Single-stage cylindrical gear reducers are suitable for a reduction ratio of 35, while conical and cylindrical gear reducers are suitable for a reduction ratio of 815.

Worm reducers: compact structure, large transmission ratio, but low transmission efficiency, suitable for low-power and intermittent working occasions. The reduction ratio range of worm reducers is large, usually 10~80.

2. Planetary gear reducers and three-ring reducers - Transmission comparison

Planetary gear reducers: have the characteristics of high rigidity, high precision (single stage can be within 1 point), high transmission efficiency (single stage at 97%~98%), etc. The minimum single-stage reduction is 3, and the maximum is generally not more than 10. The common reduction ratios are 3/4/5/6/8/10.

Three-ring reducer: It has a unique three-ring planetary gear train structure, consisting of three planetary wheels, each of which is connected to the housing through a bearing to form a stable support system. The three-ring reducer demonstrates excellent performance in heavy machinery and automated production lines.

Table View:

Gear Reducer Type Advantages Disadvantages Typical Applications
Gear Reducer High transmission efficiency, simple structure, low cost Relatively high noise, limited transmission ratio General industrial machinery, transmission systems
Worm Gear Reducer Large reduction ratio, self-locking, compact structure Low transmission efficiency, high heat generation Low-speed, high-torque applications, such as cranes, conveyors
Planetary Gear Reducer High precision, high rigidity, high transmission efficiency, small size Complex structure, high cost Servo motors, robots, precision instruments
Three-ring Reducer High load capacity, high rigidity, long life Complex structure, high cost Heavy machinery, metallurgical equipment
