JIE Drive Products for Series of Construction Machinery Industry

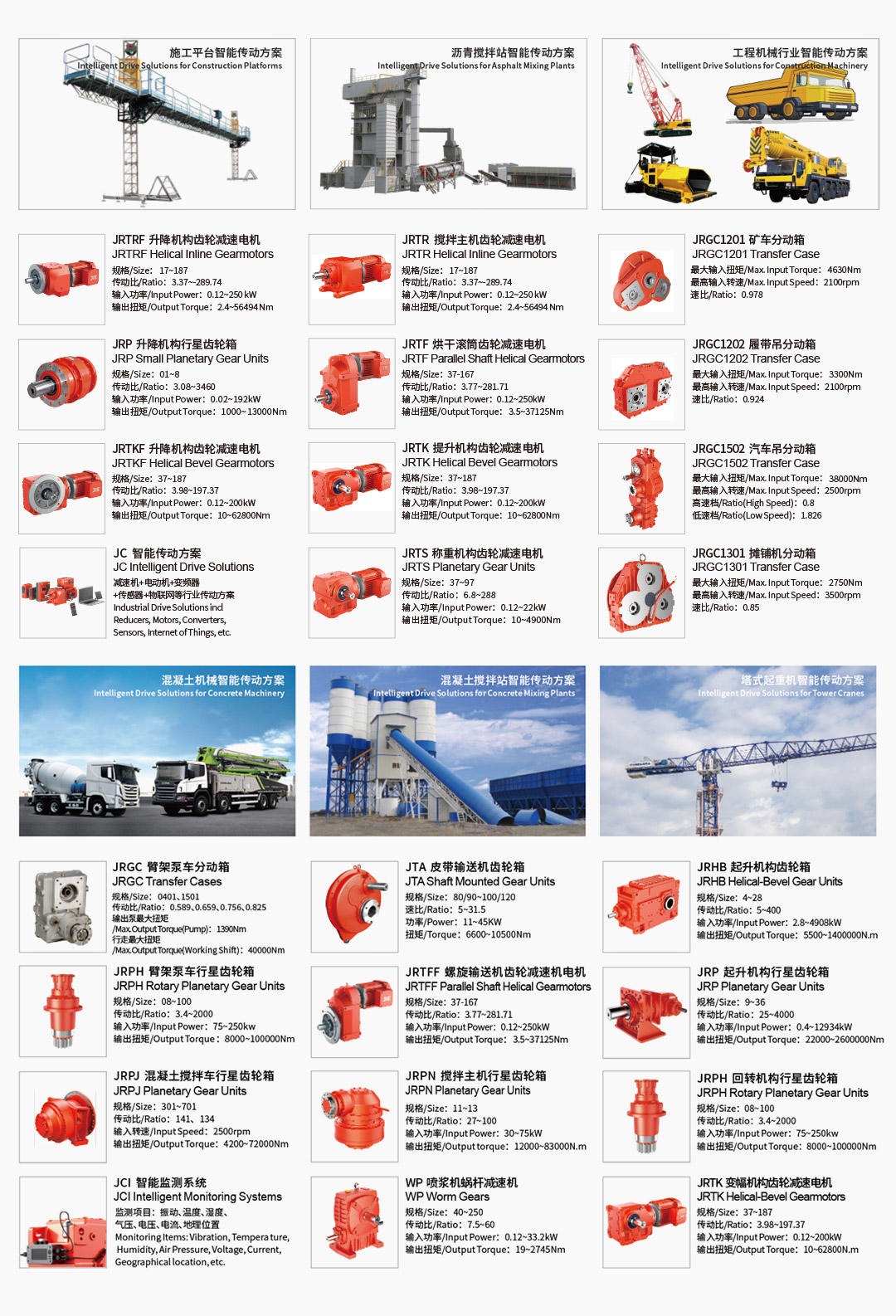

JIE Drive offers a wide range of intelligent drive solutions for various applications in the construction machinery industry. Here's a breakdown of their products for specific construction machinery segments:

Asphalt Mixing Plants:

JRTR Helical Inline Gearmotors: For driving the main mixer, with sizes ranging from 17 to 187, ratios from 3.37 to 289.74, input power from 0.12 to 250 kW, and output torque from 24 to 56494 Nm.

JRTF Parallel Shaft Helical Gearmotors: For driving the drying drum, with sizes ranging from 37 to 167, ratios from 3.77 to 281.71, input power from 0.12 to 250 kW, and output torque from 3.5 to 37125 Nm.

JRTK Helical Bevel Gearmotors: For driving the lifting mechanism, with sizes ranging from 37 to 187, ratios from 3.98 to 197.37, input power from 0.12 to 200 kW, and output torque from 10 to 62800 Nm.

JRTS Planetary Gear Units: For driving the weighing mechanism, with sizes ranging from 37 to 97, ratios from 6.8 to 288, input power from 0.12 to 22 kW, and output torque from 10 to 4900 Nm.

Concrete Machinery:

JRGC Transfer Cases: For driving various mechanisms in concrete machinery, with sizes ranging from 0401 to 1501, ratios from 0.589 to 0.825, and output torque for the pump ranging from 1390 Nm to 4000 Nm.

JRPH Rotary Planetary Gear Units: For driving the main pump in concrete boom pumps, with sizes ranging from 08 to 100, ratios from 3.4 to 2000, input power from 75 to 250 kW, and output torque from 000 to 00000 Nm.

JRPJ Planetary Gear Units: For driving the drum in concrete mixers, with sizes ranging from 301 to 701, ratios from 141 to 134, input speed of 2500 rpm, and output torque from 4200 to 72000 Nm.

JCI Intelligent Monitoring Systems: For monitoring various parameters in concrete machinery, including vibration, temperature, humidity, air pressure, voltage, current, and geographical location.

Construction Hoists:

JRTRF Helical Inline Gearmotors: For driving the hoist mechanism, with sizes ranging from 17 to 187, ratios from 3.37 to 289.74, input power from 0.12 to 250 kW, and output torque from 24 to 56494 Nm.

JRP Small Planetary Gear Units: For driving the hoist mechanism, with sizes ranging from 01 to 8, ratios from 3.08 to 3460, input power from 0.02 to 192 kW, and output torque from 1000 to 13000 Nm.

JRTKF Helical Bevel Gearmotors: For driving the luffing mechanism, with sizes ranging from 37 to 187, ratios from 3.98 to 197.37, input power from 0.12 to 200 kW, and output torque from 10 to 62800 Nm.

Tower Cranes:

JRHB Helical-Bevel Gear Units: For driving the hoist mechanism, with sizes ranging from 4 to 28, ratios from 5 to 400, input power from 2.8 to 4908 kW, and output torque from 500 to 10000 N.m.

JRP Planetary Gear Units: For driving the hoist mechanism, with sizes ranging from 9 to 36, ratios from 25 to 4000, input power from 0.4 to 12934 kW, and output torque from 22000 to 200000 Nm.

JRPH Rotary Planetary Gear Units: (continued) For driving the slewing mechanism in tower cranes, with sizes ranging from 08 to 100, ratios from 3.4 to 2000, input power from 75 to 250 kW, and output torque reaching high values (specific figures not provided).

JRTK Helical-Bevel Gearmotors: For driving the luffing mechanism, with sizes ranging from 37 to 187, ratios from 3.98 to 197.37, input power from 0.12 to 200 kW, and output torque from 10 to 62800 Nm.

JIE Drive offers a complete intelligent drive solution (JC Intelligent Drive Solutions) that combines gear reducers, motors, inverters, sensors, and Internet of Things (IoT) technology. This allows for centralized control, monitoring, and data analysis for improved performance and efficiency.
